M3 Adaptor plate TL4R for ZEISS XXT; L 75.0 mm
ITP P/N:
TPM3MESSOTL4R
11
Suitable for Zeiss: 620161-8269-000
Suitable for Zeiss: 620161-8269-000

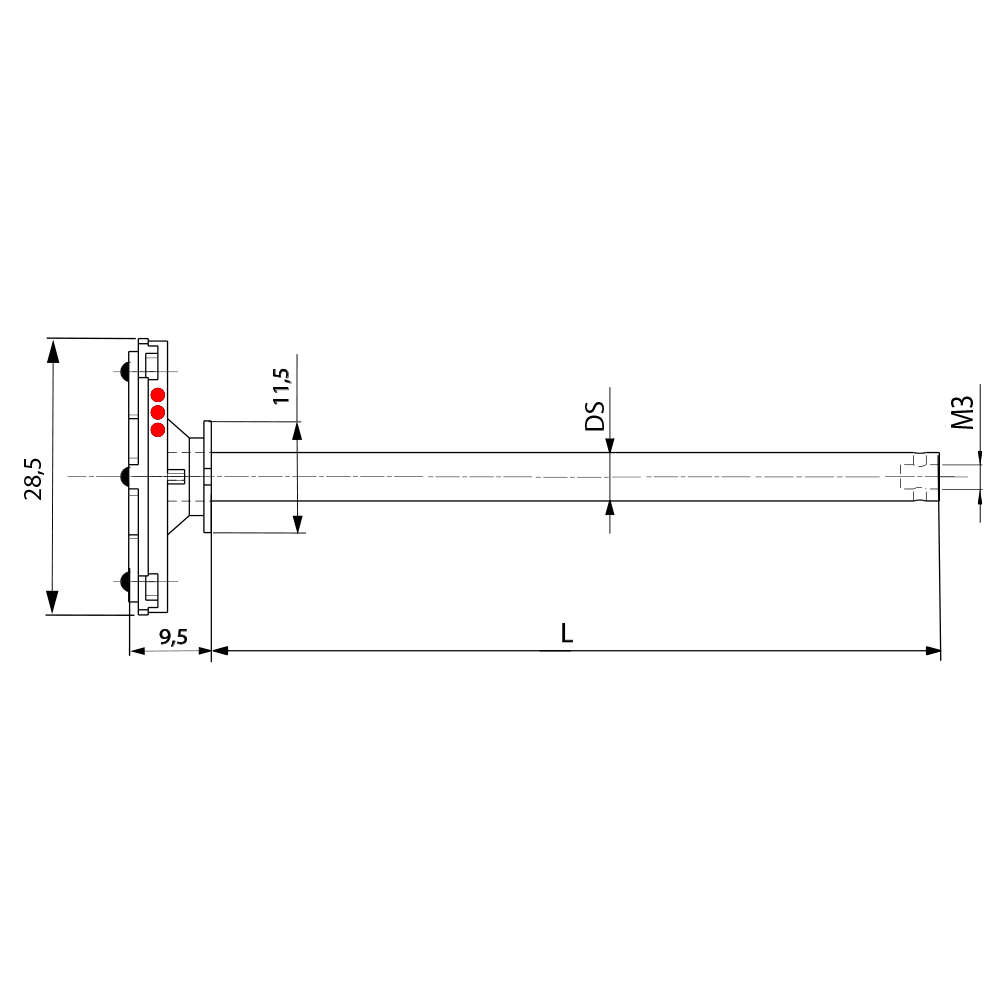

M3 Adaptor plate TL4R for ZEISS XXT; L 75.0 mm
ITP P/N:
TPM3MESSOTL4R
Adaptor plates; base: aluminium; stem: carbon fiber
The TL4 M3 XXT adaptor plate is used to connect the stylus to the probing system. It is fitted with an ID chip to identify the installed stylus system.Both this disc and the reference probe are used …
The TL4 M3 XXT adaptor plate is used to connect the stylus to the probing system. It is fitted with an ID chip to identify the installed stylus system.Both this disc and the reference probe are used to measure a calibration sphere.
| Thread size: | M3 XXT |
|---|---|
| L: | 75.0 |
| DS: | 5.0 |
| CNC-compatible: | no |
| Stem Material: | carbon fiber |
| Base Material: | aluminium |
| Weight: | 5.5 |
| Compatible with: | Zeiss |
| Zeiss No.: | 620161-8269-000 |
