KI M2 015 18 008
ITP P/N:
KIM201518008
11
KI M2 015 18 008
ITP P/N:
KIM201518008
€113.00*
Available, ready for shipment 1-3 days

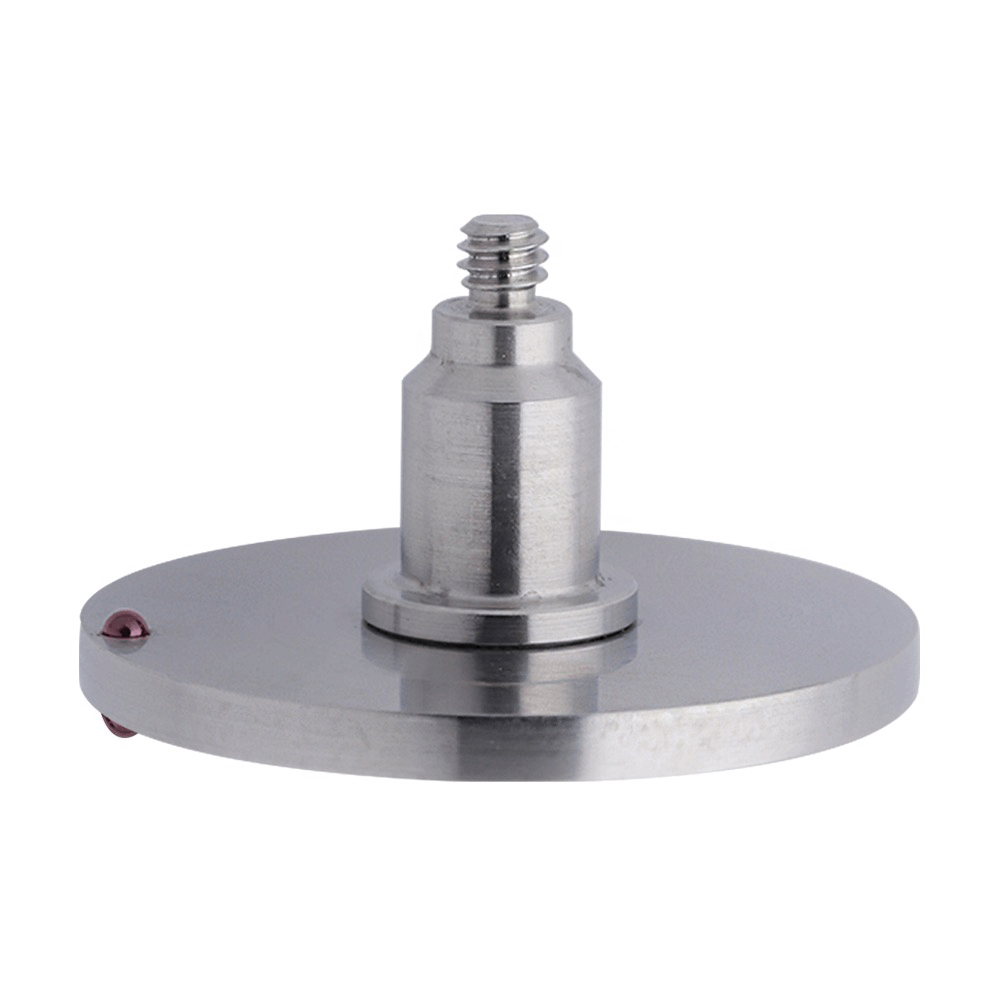

Disc Styli; base: stainless steel; stem: stainless steel; ball: stainless steel/ruby
This type of stylus has a monolithic base and a stainless steel disc. In addition, ruby balls are mounted on the face to enable measurement of groove width, for example. These styli are often used to measure workpieces made of low hardness materials such as aluminium, plastics or non-alloy steels.

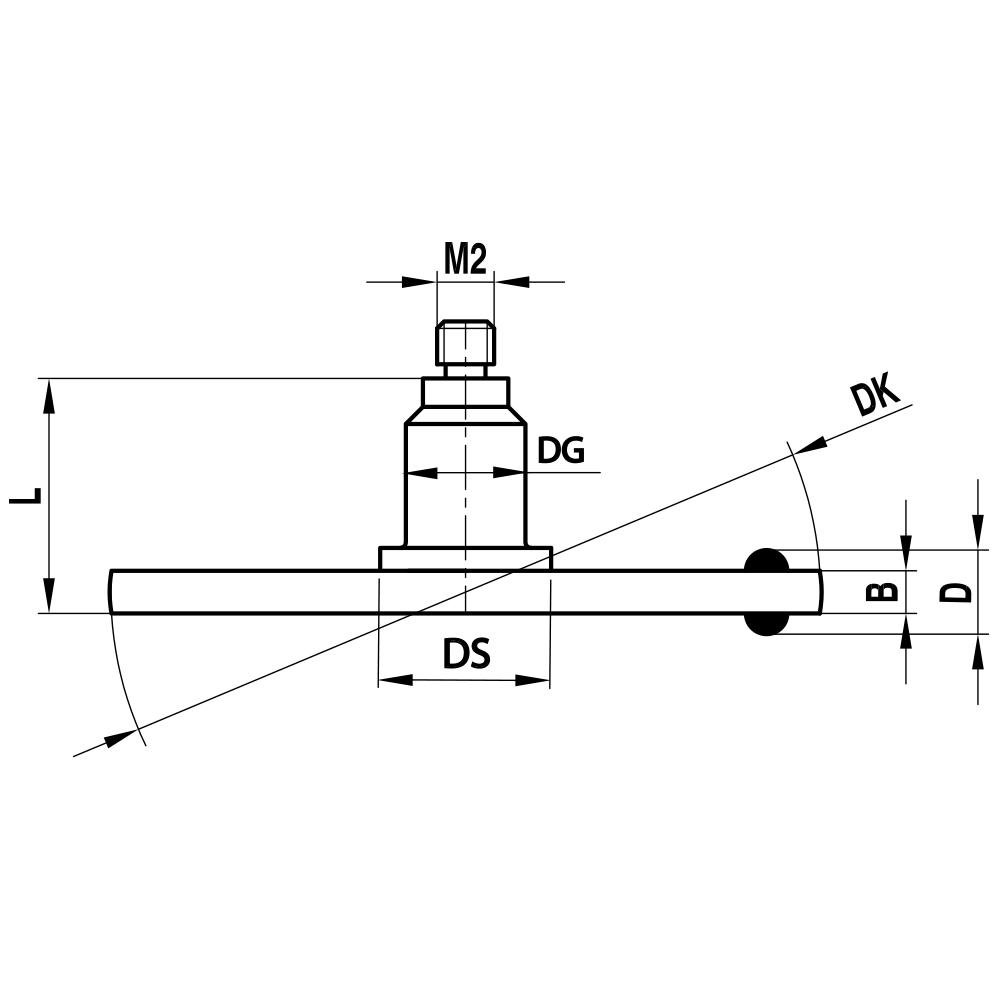

| Thread size: | M2 |
|---|---|
| DK: | 18.0 |
| L: | 8.25 |
| DG: | 4.2 |
| DS: | 6.0 |
| B: | 1.5 |
| D: | 2.0 |
| Stem Material: | Stainless Steel |
| Base Material: | Stainless Steel |
| Weight: | 6.3 |
