TH M3 002 04 022
ITP P/N:
THM300204022
11
TH M3 002 04 022
ITP P/N:
THM300204022
€169.00*
Available, ready for shipment 1-3 days

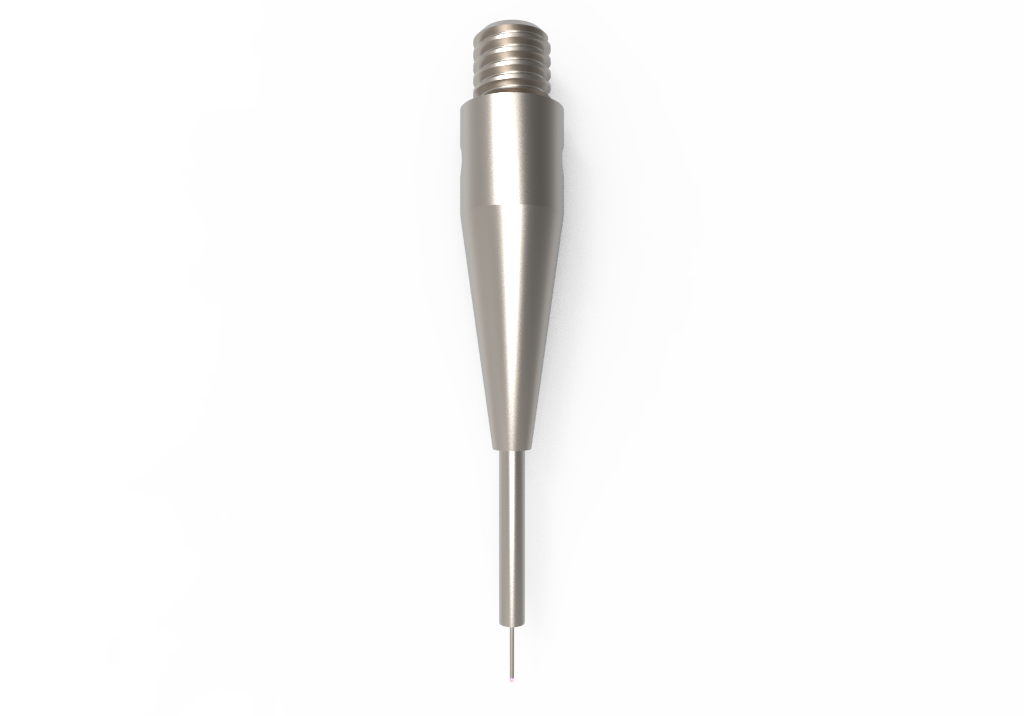

Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The carbide stem with its extreme rigidity enables a wide range of dimensions. The stems can be single or multi-stepped. Ruby balls of the highest quality from Ø0,2mm to Ø1,0mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

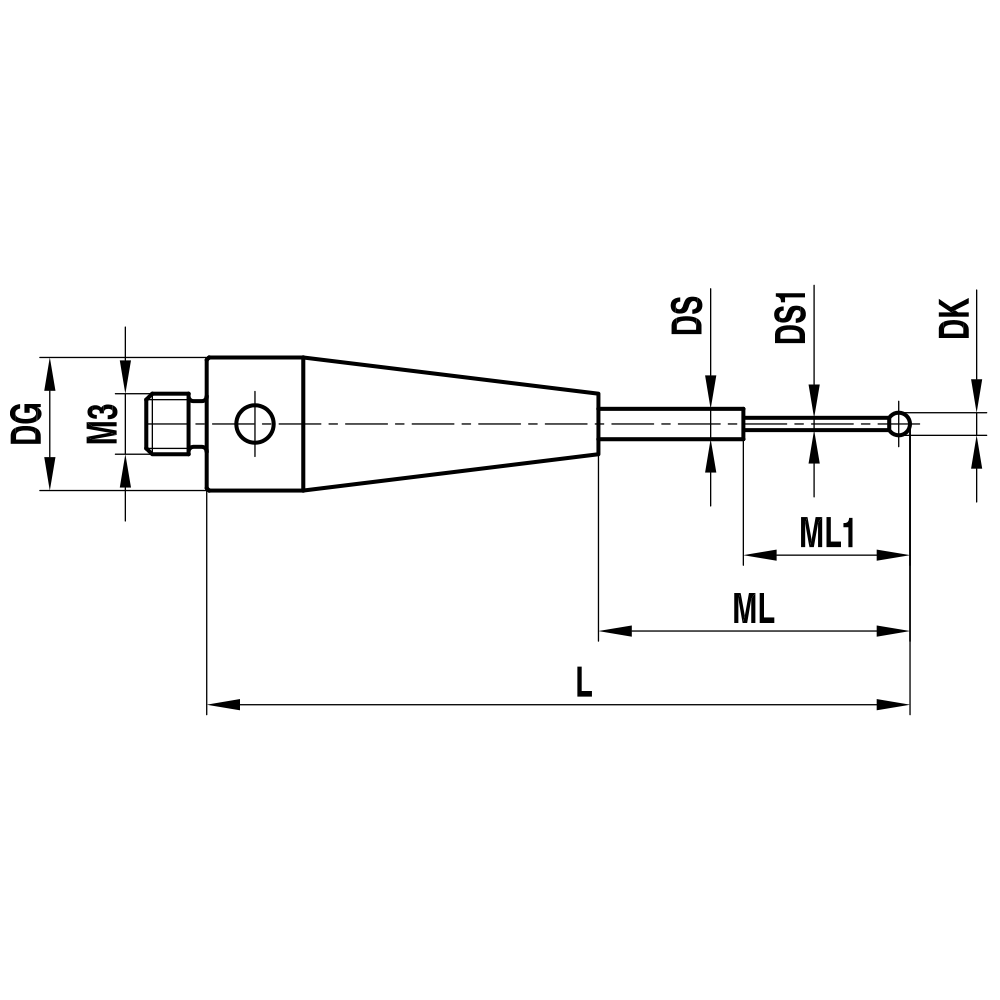

| Thread size: | M3 |
|---|---|
| DK: | 0.2 |
| L: | 22.0 |
| DG: | 4.0 |
| ML: | 9.0 |
| ML (1): | 2.3 |
| DS: | 1.0 |
| DS (1): | 0.18 |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Probe ball material: | ruby |
| Weight: | 1 |
