TH M5 DC30 11 050
ITP P/N:
THM5DC3011050
11
Suitable for Zeiss: 626115-0319-050, 626115-0229-050
Suitable for Zeiss: 626115-0319-050, 626115-0229-050
TH M5 DC30 11 050
ITP P/N:
THM5DC3011050
€479.00*
Available in 14 days, delivery time 1-3 days
Straight Styli; base: titanium; stem: carbide; ball: diamond coated
Straight stylus for the highest demands.
The extremely rigid carbide stem provides maximum accuracy.
The diamond-coated silicon carbide balls provide maximum wear resistance and a very long service life.
In this product group you will find probes with ball sizes from Ø1,5mm to Ø10,0mm.
Other sizes can be requested via the configurator or by e-mail.

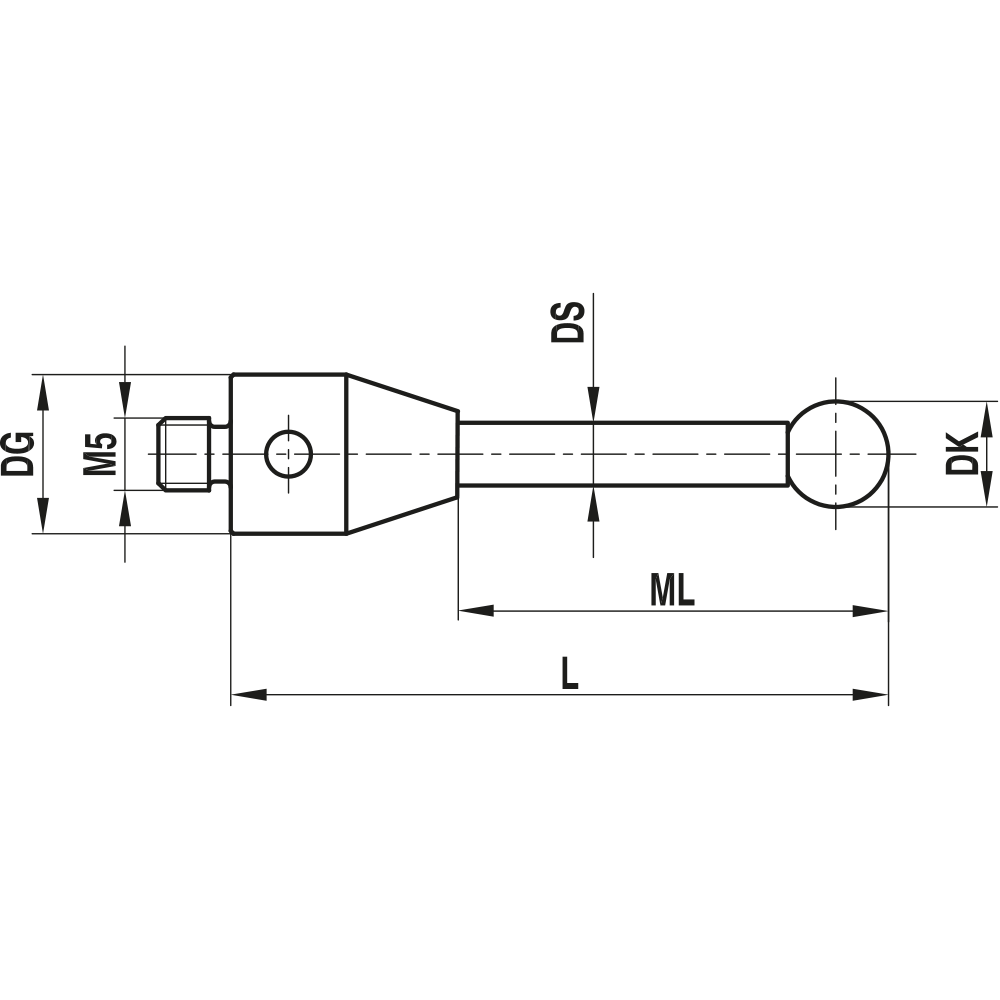

| Thread size: | M5 |
|---|---|
| DK: | 3.0 |
| L: | 50.0 |
| DG: | 11.0 |
| ML: | 40.0 |
| DS: | 2.0 |
| Compatible with: | Zeiss |
| Stem Material: | Carbide |
| Base Material: | Titanium |
| Probe ball material: | diamond coated |
| Weight: | 5.1 |
| Zeiss No.: | 626115-0319-050, 626115-0229-050 |
