TV M5 TZ2 15 200
ITP P/N:
TVM5TZ215200
11
Suitable for Zeiss: 626107-2200-130, 262107-2200-130
Suitable for Zeiss: 626107-2200-130, 262107-2200-130
TV M5 TZ2 15 200
ITP P/N:
TVM5TZ215200
€250.00*
Available in 14 days, delivery time 1-3 days

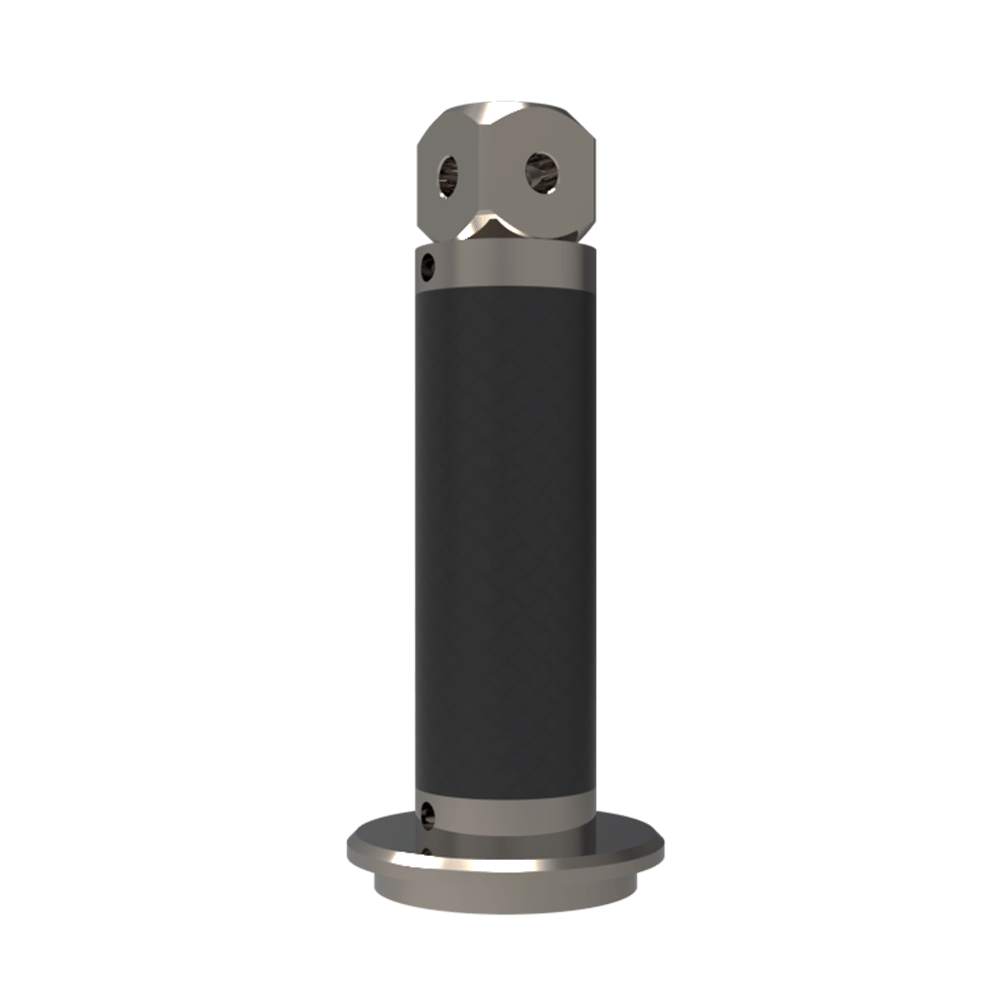

Extensions; base: titanium; stem: carbon fiber
Adaptor plate extension with carbon fibre tube stem and titanium end pieces. Carbon fibre combines the best properties that are most important in metrology. These include extreme bending and torsional stiffness, very low weight and a very low negative coefficient of expansion. This component is used to extend the measuring length of a measuring table such as the TPM5MESSO001.

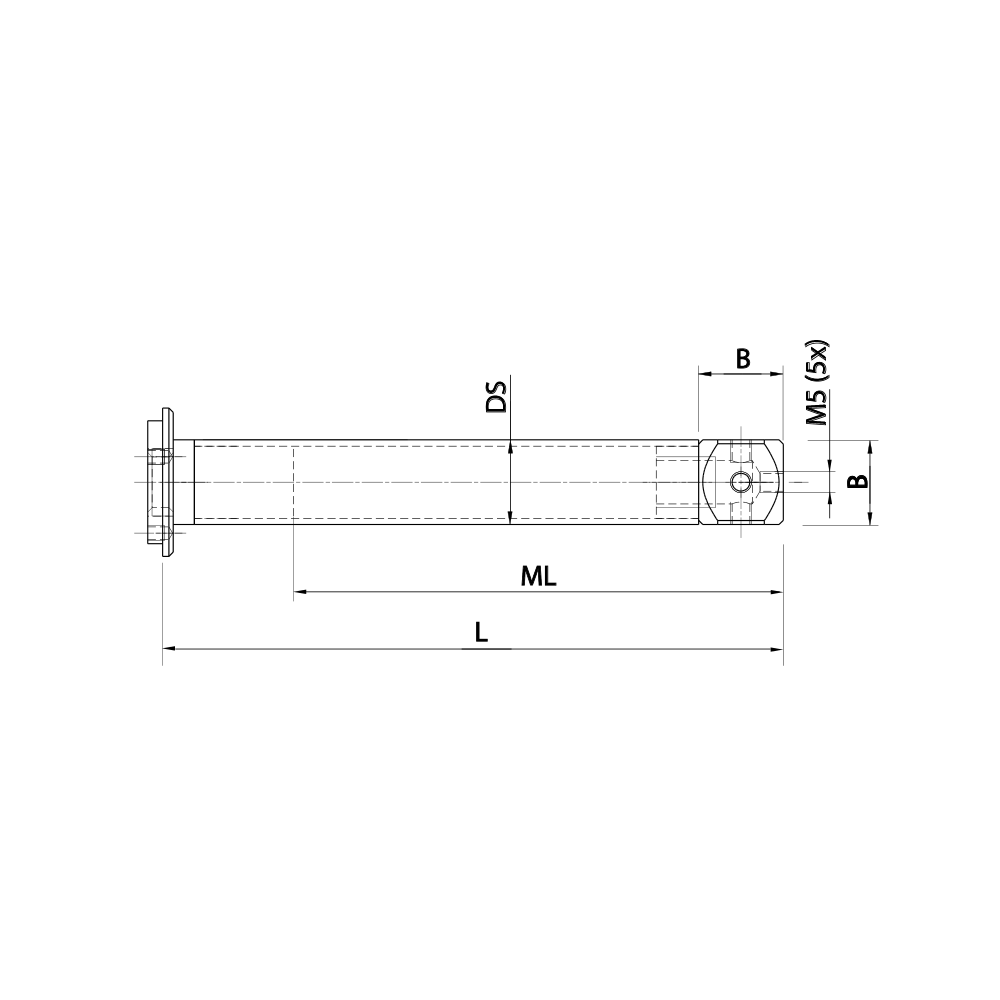

| Thread size: | M5 |
|---|---|
| L: | 241.5 |
| ML: | 224.0 |
| DS: | 20.0 |
| B: | 15.0 |
| Compatible with: | Zeiss |
| Stem Material: | Carbon Fiber |
| Base Material: | Titanium |
| Weight: | 83.8 |
| Zeiss No.: | 626107-2200-130, 262107-2200-130 |
