WT M5 575 15 000
ITP P/N:
WTM557515000
11
WT M5 575 15 000
ITP P/N:
WTM557515000
€73.00*
Available, ready for shipment 1-3 days

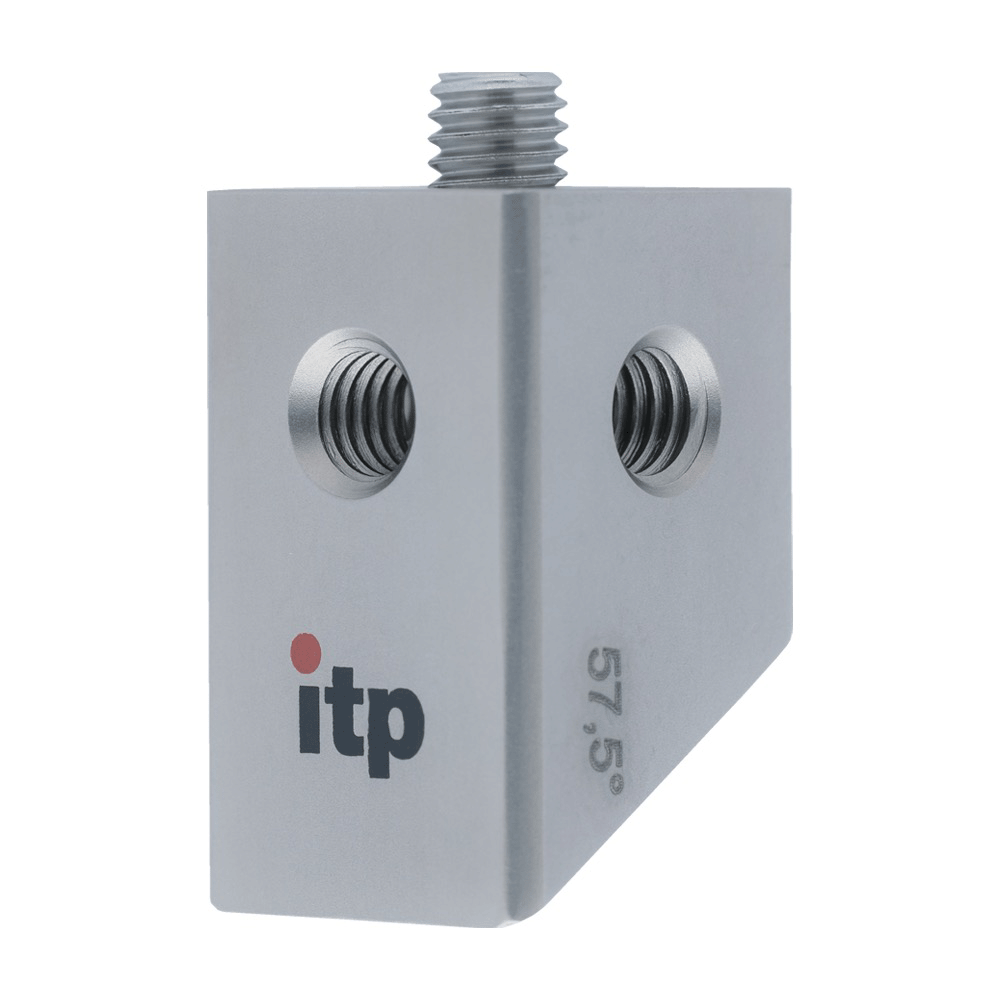

Adaptors / Holders; base: titanium
Cubes are important components in metrology that allow flexible and accurate positioning of styli. They are particularly useful for building L-shaped and multi-arm styli, which have a wide range of applications in different measurement configurations. Fixed angle cubes (e.g. 87.5°) are especially useful when a rigid measurement system is used.

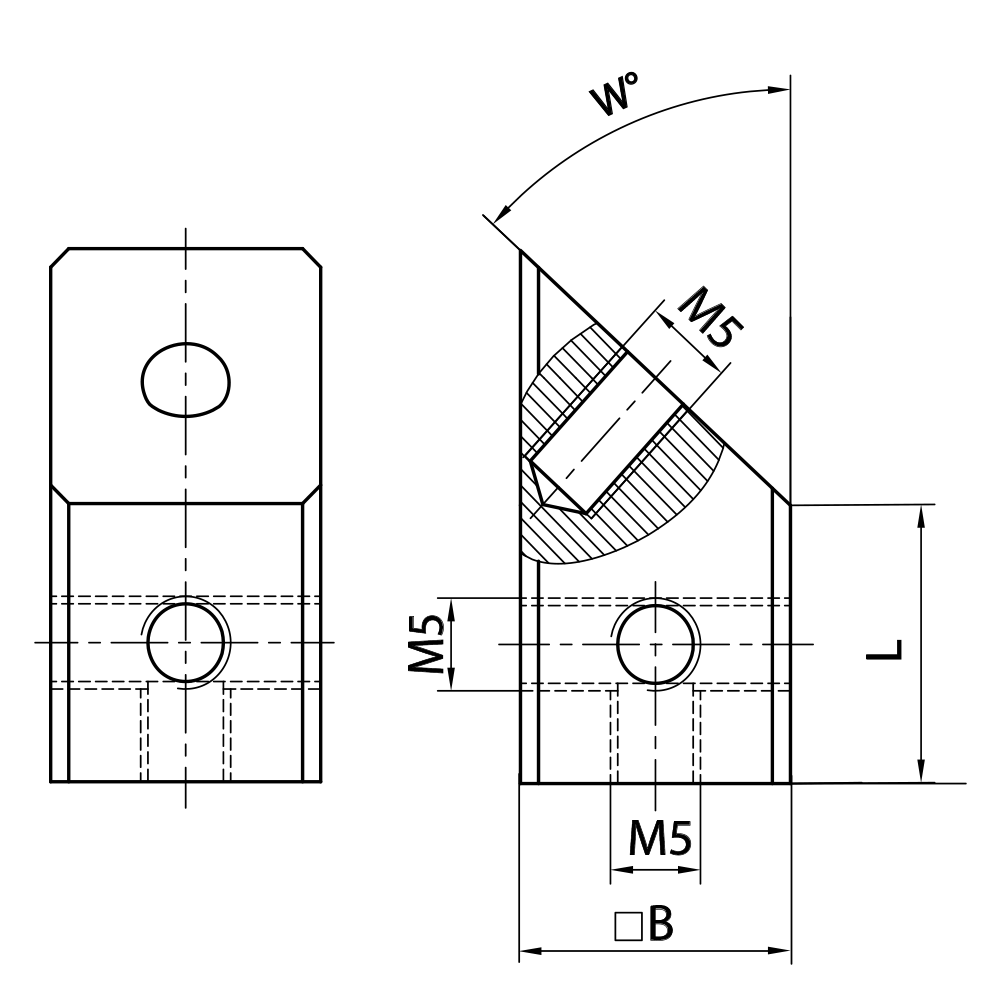

| Thread size: | M5 |
|---|---|
| L: | 15.0 |
| B: | 15.0 |
| W: | 57.5 |
| Base Material: | titanium |
| Weight: | 17.7 |
